Supply Stainless Steel Wire Mesh Specifications, Materials, Woven Types, and Custom Sizes

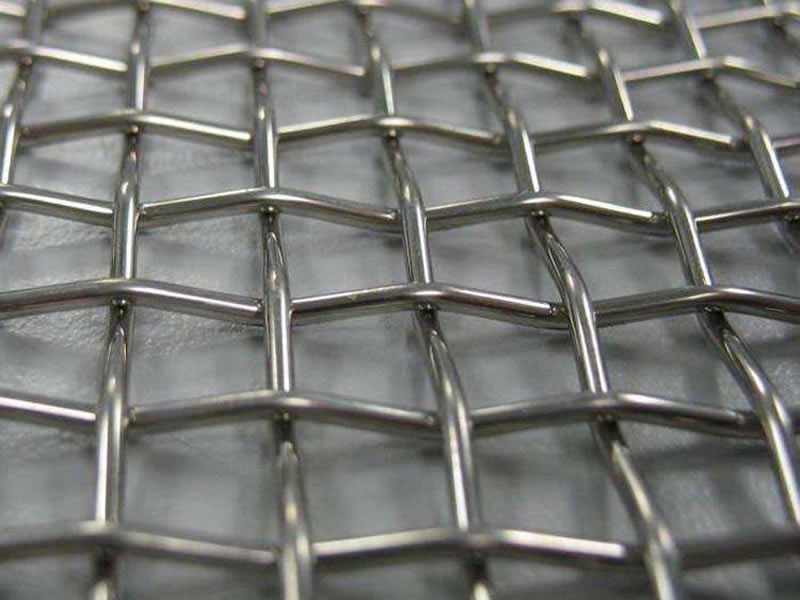

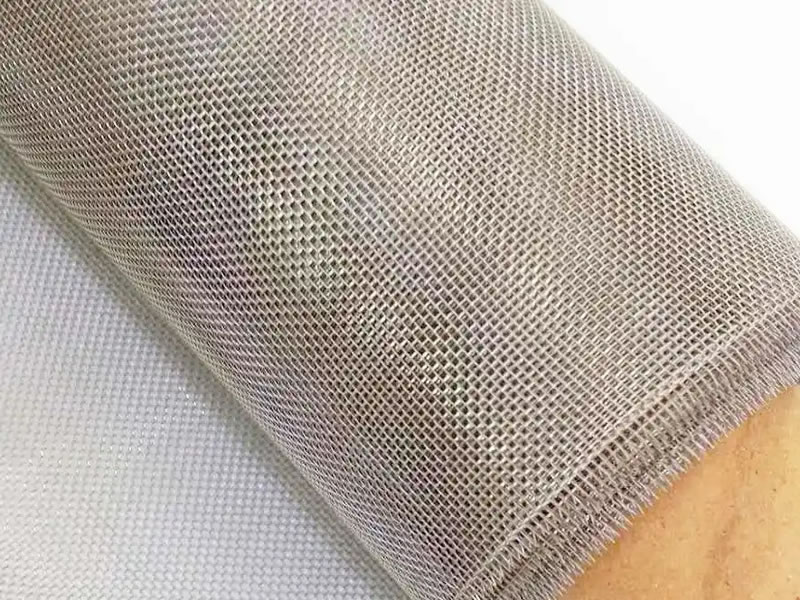

304 Stainless Steel Wire Mesh is made from SS304 stainless steel wire and is used for filtration, screening, and separation applications. It provides corrosion resistance, high strength, durability, and uniform openings. Available in plain weave, twill weave, Dutch weave, it supports various mesh sizes, wire diameters, and roll dimensions. Common applications include chemical processing, food processing, pharmaceutical filtration, mining, petroleum, and industrial separation.
Specification
- Material: SS304, AISI 304 Stainless Steel
- Weaving: Plain Weave, Twill Weave, Dutch Weave, Reverse Dutch Weave
- Mesh: 1 mesh to 635 mesh
- Wire Diameter: 0.02 mm to 2.0 mm
- Aperture Opening: 0.02 mm to 20 mm

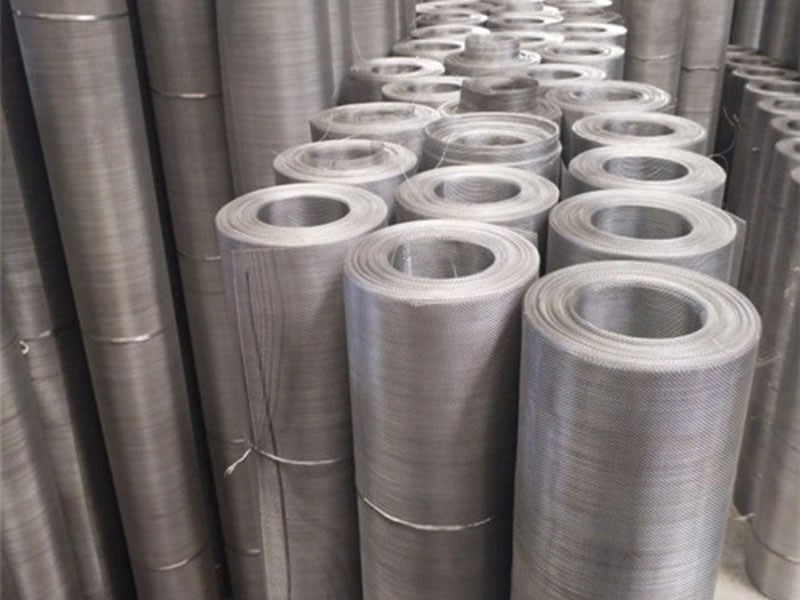

- Roll Width: 0.5 m, 1 m, 1.2 m, 1.5 m, 2 m (custom available)
- Roll Length: 30 m, 50 m, 100 m (custom available)
- Filtration Rating: 5–1000 microns (depending on mesh size and weave type)
- Surface Finish: Plain surface, polished surface (optional)
- Mesh Shape: Square opening, rectangular opening, Dutch weave opening
- Processing Forms: Rolls, sheets, filter discs, cylinders, baskets, custom parts
Features
- Corrosion resistance, High tensile strength, Heat resistance, Acid resistance, Alkali resistance, Uniform openings, Long service life
Applications
- Filtration: Liquid filtration, Gas filtration, Oil filtration, Polymer filtration
- Industrial Processing: Chemical processing, Food processing, Pharmaceutical filtration, Petroleum filtration, Mining separation
- Screening: Particle screening, Material sieving, Industrial separation
- Other Uses: Construction, Aerospace, Automotive, Electronics, Laboratory equipment
