Black Wire Mesh Specifications and Industrial Applications

Black Wire Mesh, also known as plain steel wire mesh or carbon steel wire mesh, is made from low carbon steel wire. It provides strength, wear resistance, and cost efficiency. Applications include industrial filtration, rubber extrusion, plastic recycling, grain sifting, and protective guards. Common weaving methods include plain weave and twill weave.

Specifications

• Material: Low carbon steel wire, carbon steel wire
• Weaving: Plain weave, twill weave, Dutch weave.
• Mesh: 1–635 mesh per inch.
• Wire Diameter: Including 0.05 mm, 0.1 mm, 0.2 mm, 0.5 mm, 1.0 mm, 2.0 mm, and 4.0 mm.
• Aperture Size: Including 0.05 mm, 0.1 mm, 0.5 mm, 1 mm, 5 mm, 10 mm, and 50 mm.
• Surface: Black steel surface, black annealed surface.

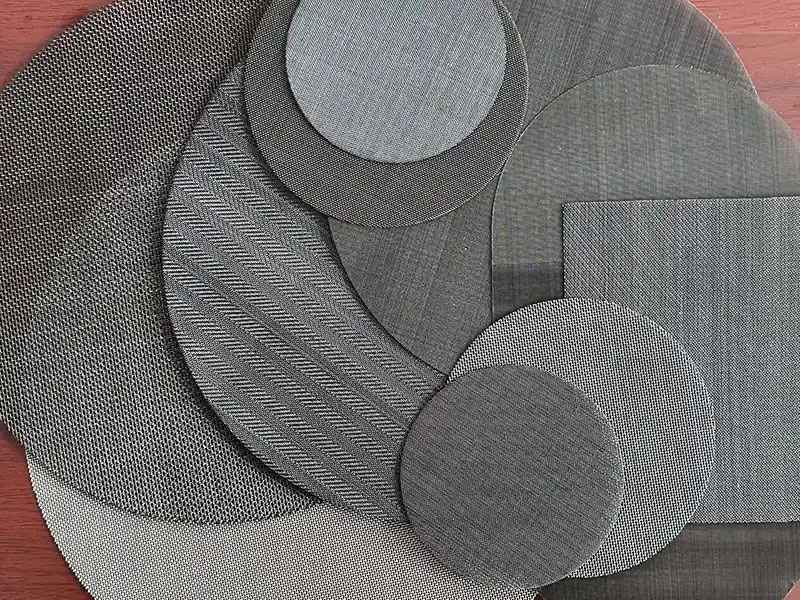

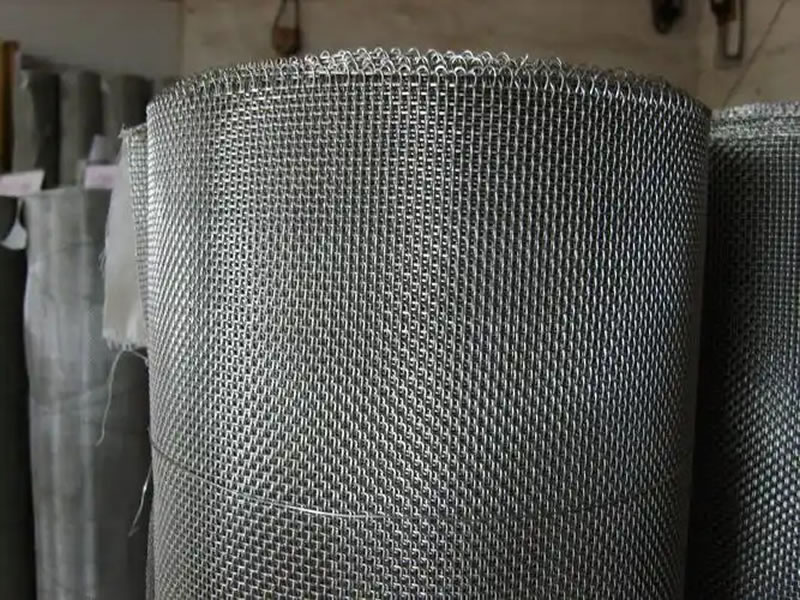

• Product Forms: Wire mesh rolls, sheets, filter discs, cylinders, baskets and fabricated components.
• Packaging: Roll packaging, plastic wrapping, pallet packaging, and wooden case packaging.
• Customization: Custom mesh count, wire diameter, dimensions, and processing methods.

Features

• Structural Strength: Utilizes carbon steel wire to withstand heavy mechanical loads.
• Wear Resistance: Resists abrasion during material handling and sifting processes.
• Cost Efficiency: Offers a lower price point compared to stainless steel or brass mesh.
• Formability: Allows cutting, bending, and shaping for custom equipment integration.

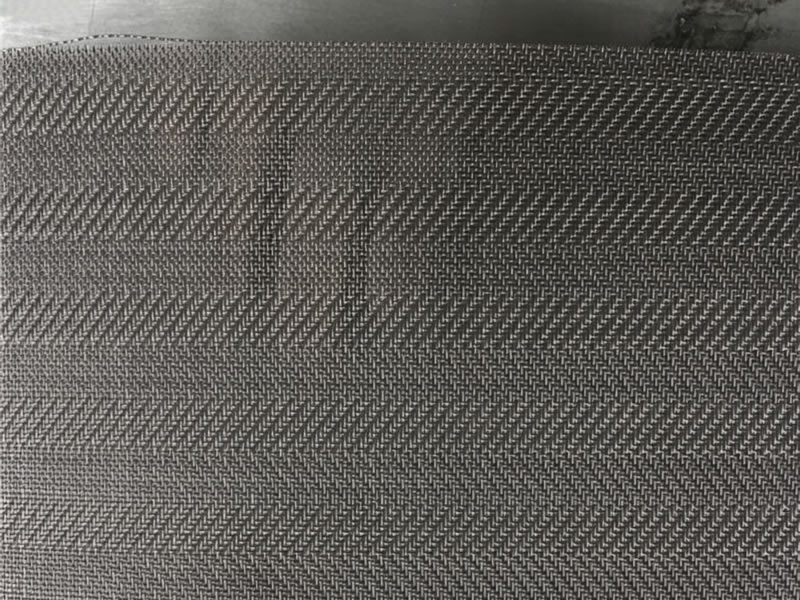

• Weave Patterns: Produced in plain weave and twill weave configurations.

Applications

• Industrial Filtration: Used for liquid filtration, gas filtration, and particle separation.
• Rubber Extrusion: Used for filtering rubber materials during extrusion processes.
• Plastic Recycling: Used for screening and filtering recycled plastic materials.
• Grain Sifting: Used for grain screening and agricultural processing.
• Mining Screening: Used for material screening and separation in mining operations.
• Equipment Protection: Used for protective guards, machine covers, and industrial components.
